NORDSON™ Compatible Pump Adapter & Pick-Up Tubes 0.49″ ID Parts

BRS High Fidelity Spare Parts offers this adapter for both the Nordson™ 100+ pump as well as the Transfer Pump.
Both use 0.49″ID Pick-up Tubes but the adapter is slightly different.
Please specify if the adapter you want is for the Transfer Pump or for an Injector Pump.

Categories: ,
  • Description

Description

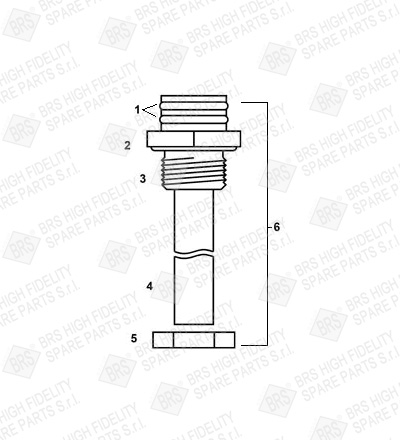

KEY BRS PART PART DESCRIPTION
1 BN49.1185 BN941185 O-RING
2 BN49.2161 BN942161 O-RING / GASEKT
3 BN49.4225 BN114225 TRANSFER PUMP ADAPTER
3 BN49.4225 BN114225 100+ PUMP ADAPTER
4 BN49.0778 BN180778 PICK-UP TUBE, 0.49 ID x 18″
4 BN49.4722 BN224722 PICK-UP TUBE, 0.49 ID x 24″
5 BN49.2382 BN142382 NUT
6 BN49.0779 BN180779 TRANSFER PUMP MOUNT W/ 24″ P/U TUBE
6 BN49.4720 BN224720 TRANSFER PUMP MOUNT W/ 8″ P/U TUBE
6 BN49.0777 BN180777 100+ PUMP MOUNT W/ 18″ x 0.49″ P/U TUBE
6 BN49.4721 BN224721 100+ PUMP MOUNT W/ 24″ x 0.49″ P/U TUBE
A BN49.2204 BN1082204 100+ PUMP MOUNT COUPLING
(for use with Encore Pump)
B BN49.5679 BN1085679 ENCORE PUMP ADAPTER KIT
(for use in place of Modular pump adapter)

A – This coupling is used when using an Encore Injector with a 100+ Pump Mount
B – This adapter is used when using an Encore Injector with a Modular Pump Mount (replaces the Modular Pump Injector, please specify if you want 0.49″ or 0.36″ ID p/u tube fitting).
